Coffered Ceilings: Framing, Lighting and Moisture Checks

We may earn commission from links on this page. Lead-form submissions are forwarded to local inspector partners. How we research and review.

Coffered ceilings turn a flat plane into a grid of recessed panels framed by beams, and they show up in everything from new custom homes in Castle Rock to remodeled 1990s two-stories in Highlands Ranch. A coffered ceiling can be a true structural feature, but far more often it is a decorative build-out attached below an ordinary drywall ceiling. Either way, it changes the weight hanging from the ceiling framing, creates new places for lights and wiring, and can complicate access to the attic above. This guide explains how coffers are built, what to look for in the attachment and finish, how recessed lighting is integrated, what cracks may and may not mean, why top-floor coffered ceilings raise attic air sealing questions, and what these projects typically cost. It is aimed at buyers evaluating an existing ceiling and owners considering adding one.

Part of our Structure & Exterior guide — start there for the full picture →

What a Coffered Ceiling Is and How It Is Built

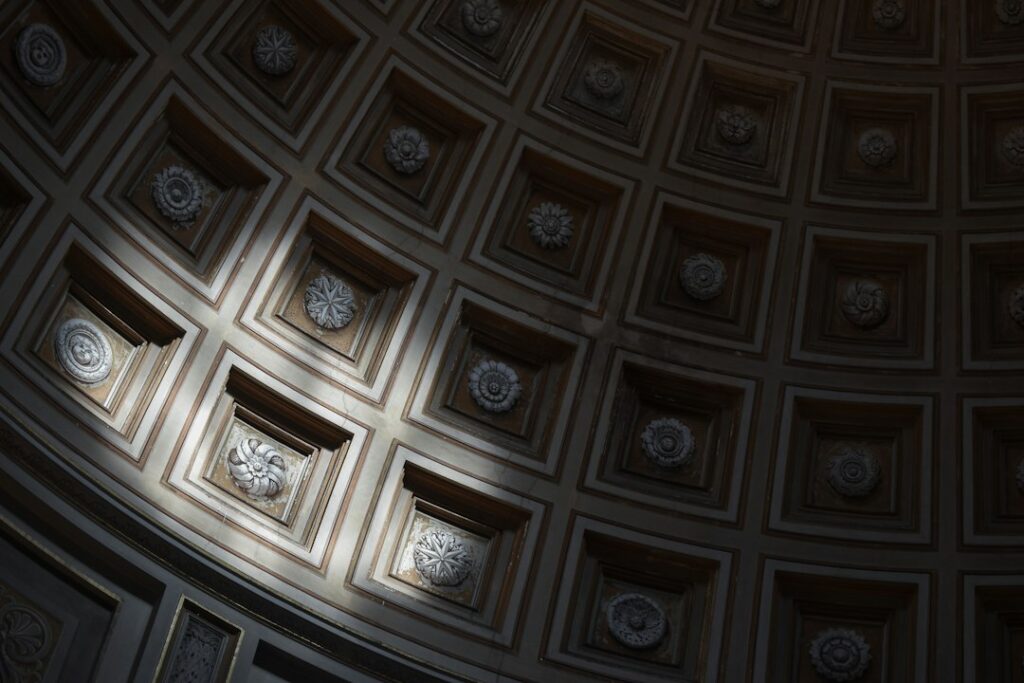

A coffered ceiling is a ceiling divided into a grid of sunken panels, or coffers, by a network of beams. Historically the coffers were formed by the actual structure, as in stone vaults or heavy timber floor systems. In most modern houses the effect is created with a framed or boxed beam grid fastened below the existing ceiling, then wrapped in drywall, MDF, plywood or solid wood and finished with crown molding and trim.

Common construction approaches

• Framed beams with drywall. Lumber, often 2×4 or 2×6, is fastened to the ceiling joists or trusses to form a ladder or box shape, then wrapped in drywall and trimmed. Common in new construction.
• Wood box beams. MDF or plywood boxes built over a blocking strip screwed into the framing, then painted or stained. Popular for remodels because they go up faster with less drywall finishing.
• Prefabricated kits. Lightweight systems of foam, polyurethane or thin wood components installed with adhesive and fasteners. They add less weight but vary in quality.
• Structural or recessed coffers. Less common, where the coffers are framed into the ceiling plane itself, sometimes using deeper floor or ceiling joists, so the panels recess upward rather than the beams hanging down.

The construction type matters because it determines how the load is carried and how hard the ceiling is to modify later. Build-out beams typically reduce headroom by the depth of the beam, often several inches, which is one reason coffered ceilings are usually recommended for rooms with ceilings of about 9 feet or more.

Coffered, tray and beamed ceilings compared

The terms are sometimes used loosely. A tray ceiling has a single raised center section surrounded by a lower perimeter, often built with framed soffits or by altering the trusses during construction. A beamed ceiling has parallel beams running in one direction, common in rustic and mountain-style homes around Evergreen and Conifer. A coffered ceiling has beams running in both directions to form a grid of panels. Coffers involve more intersections, more miters and more joints than either alternative, which means more places for cracks and gaps to show, and more trim work to keep looking crisp.

Framing, Attachment and Added Weight

A decorative beam grid seems light piece by piece, but across a large room it adds up. Solid wood beams, thick MDF, layers of drywall, crown molding and integrated light fixtures all hang from the ceiling framing. The ceiling joists or trusses above were designed for a specific dead load, typically assuming a single or double layer of drywall and insulation, not an added grid of heavy millwork.

Lighter systems and drywall-wrapped lumber are usually not a structural concern when fastened correctly to framing, but very heavy solid wood beams, stone-look panels or added fixtures such as chandeliers can change the picture. Where an owner wants heavy materials, an engineer or the truss manufacturer may need to confirm that the framing can carry the added load. Trusses in particular should not be cut, notched or have significant loads added without guidance.

Attachment details that matter

• Beams should be fastened into joists or trusses, or into solid blocking that is itself fastened to framing, not just glued to drywall or anchored with hollow-wall fasteners.
• Long beams running parallel to framing need blocking between joists to have something solid to attach to.
• Fasteners need adequate length to pass through the drywall and into framing by a reasonable depth.
• Adhesive alone is generally not a primary attachment method for wood or MDF beams.

Warning signs of an attachment problem

• Gaps opening between beams and the ceiling, especially at the center of long spans.
• Beams that sag, twist or are out of level compared with the room.
• Cracked or separating crown molding at miters and corners.
• Nail pops along the beam sides or the ceiling field.
• Movement or creaking when the floor above is walked on.

Under the American Society of Home Inspectors standard of practice, inspectors inspect structural components, including the ceiling structure, and inspect interior walls, ceilings and floors. They are not required to provide engineering analysis or offer an opinion on the adequacy of structural systems, so concerns about load capacity are typically referred to an engineer.

Recessed Lighting and Wiring in Coffers

Coffers are natural places for lighting. Common approaches include a recessed fixture centered in each coffer, LED tape or cove lighting hidden along the inside of the beams, a chandelier or pendant hung from the center panel, and accent lights aimed at walls or art.

Each approach has inspection points. Recessed fixtures need enough depth above the ceiling plane; a coffered build-out does not add depth above the original ceiling, but a recessed coffer or a dropped beam can create shallow cavities. Fixtures in contact with insulation must be rated for that contact, typically labeled IC-rated, and fixtures in a top-floor ceiling should be airtight-rated to limit air leakage into the attic. Low-profile LED wafer lights have made coffer lighting easier because they need very little depth.

Wiring routed inside beams should be in boxes where splices occur, with access to those boxes preserved, and LED drivers and power supplies for tape lighting need ventilation and accessibility for future replacement. A beam that is fully sealed with a driver buried inside can turn a simple repair into a demolition project. For more on fixture types, spacing and ratings, see our guide to recessed lighting. New circuits and fixture work generally require a licensed electrician and, in most Colorado jurisdictions, a permit.

Cracks, Truss Uplift and Seasonal Movement

Coffered ceilings show cracks in a few predictable places: at the joint where a beam meets the ceiling, at inside corners of the coffers, at miters in crown molding and along drywall seams on the beam faces. Not every crack means a structural problem.

Common causes

• Shrinkage and normal movement. Lumber and MDF shrink and swell with humidity. Colorado’s dry winters can open small gaps at trim joints that close partially in summer.
• Truss uplift. In roof-truss construction, the bottom chord of trusses can arch upward in winter as the top chords and bottom chords experience different moisture and temperature conditions, sometimes lifting the ceiling away from interior walls. A coffered grid fastened to trusses may show seasonal cracking at walls or across the beam grid. Uplift is generally considered a cosmetic issue, but it can recur every year.
• Inadequate fastening. Beams attached only to drywall or with short fasteners may slowly pull away.
• Moisture. Roof leaks, ice dams or condensation above a top-floor ceiling can stain and crack finishes.
• Structural movement. Sagging framing, overloaded joists or foundation settlement can show up as cracking that grows over time.

Telling these apart often depends on pattern and timing. Hairline cracks at trim joints that open in winter and close in summer point toward seasonal movement. Cracks that widen steadily, accompany sagging or appear with water stains deserve closer evaluation. Our guide to ceiling cracks explains common patterns, and drywall repair covers fixes once the cause is addressed.

Top-Floor Coffered Ceilings and the Attic Above

When a coffered ceiling sits directly below an attic, the ceiling is also part of the home’s thermal and air barrier. Every recessed light, every wire penetration and every gap at the top of an interior wall is a potential path for warm, moist indoor air to escape into the attic. In winter that air can deposit moisture on cold roof sheathing and contribute to frost, staining and mold, and the heat loss can feed ice dams.

ENERGY STAR’s attic air sealing guidance lists drafty rooms, hot and cold rooms, high heating or cooling bills, ice dams in winter and dust in rooms directly below the attic as common symptoms that a home may benefit from attic air sealing. It recommends completing air sealing before adding attic insulation and suggests hiring a professional if the attic shows wet or damp insulation, moldy or rotted rafters or joists, bath or kitchen vents exhausting into the attic, little or no attic ventilation, or knob-and-tube wiring. ENERGY STAR’s companion guidance also cautions that sealing a home can affect combustion appliances and indoor air quality, and that a tighter home may need mechanical ventilation.

The EPA’s guide to mold and moisture notes that hidden mold can grow in roof materials above ceilings because of roof leaks or insufficient insulation. A coffered ceiling with many new penetrations, installed without sealing them from above, can make an existing attic moisture problem worse.

Practical steps

• Seal light housings and wire penetrations from the attic side where accessible, using fixtures rated for airtight use.
• Restore insulation over the ceiling after any electrical work and keep it clear of non-IC fixtures.
• Confirm the attic has adequate ventilation and that bath and kitchen fans vent outdoors. See our guide to attic ventilation.
• Look for stains or frost on roof sheathing above the coffered room in winter.

Smoke Alarms, Sprinklers and Beam Pockets

Deep beams change how smoke moves across a ceiling. Smoke rising from a fire spreads along the ceiling plane, and deep beams can trap it in the coffer where it starts, delaying its arrival at an alarm mounted in a different coffer. Fire codes and alarm installation standards include specific rules for smooth versus beamed ceilings, and manufacturers’ instructions often address beam depth and placement. In practice, this may mean placing alarms on the bottom of beams or adding alarms in more coffers, depending on beam depth and spacing.

Homeowners adding a coffered grid to a hallway or bedroom ceiling should check that existing smoke alarms still meet the manufacturer’s placement guidance once beams go in, and should not bury an alarm inside a deep coffer without confirming that location is acceptable. Our guide to smoke detector placement covers general spacing rules. Homes with fire sprinklers, which are rare in older Front Range single-family houses but more common in newer construction and townhomes, need sprinkler coverage reviewed by a qualified contractor before beams are added, because beams can obstruct spray patterns.

Planning a Coffered Ceiling Project

For owners considering adding coffers, a little planning avoids most of the problems described above:

1. Confirm ceiling height and decide on beam depth before choosing materials.
2. Locate joists or trusses and decide how the grid will align with them; layouts that ignore framing require more blocking.
3. Plan lighting, switching and access to drivers or junction boxes before beams are closed in.
4. If the room is below an attic, air seal and insulate from above while the ceiling is accessible.
5. Check with the local building department about permits for electrical work and any structural changes.
6. Account for alarms, vents, registers and sprinkler heads in the grid layout.

Contractors usually lay out the grid on the ceiling with chalk lines first, so owners can see proportions before committing.

How Much a Coffered Ceiling May Cost

Costs vary with room size, materials, ceiling height, lighting and finish level. These are general 2026 ranges for planning, and Front Range quotes can vary considerably:

• Prefabricated kit, smaller room: materials may run from several hundred to a few thousand dollars, plus installation.
• Site-built drywall or paint-grade MDF beams: commonly priced per square foot of ceiling, often in the range of roughly $20 to $50 or more per square foot installed, depending on complexity.
• Stain-grade solid wood: often substantially higher because of material cost and finish carpentry time.
• Lighting: each recessed fixture, LED tape run or pendant adds electrician time and materials; extensive lighting can add thousands.
• Engineering or framing reinforcement: where heavy beams or fixtures are planned, an engineer’s letter or added framing increases cost.

Rooms with tall ceilings may need scaffolding, which adds labor. Painting the finished grid with multiple colors is also more labor-intensive than a flat ceiling.

What to Check When Buying a Home With a Coffered Ceiling

A buyer walking through a home with a coffered ceiling can do a quick visual review:

• Sight down the beams for straightness and level, and look for gaps where beams meet the ceiling.
• Check corners and miters for open joints and crown molding separation.
• Look for water stains or patched areas on the ceiling panels, especially on top floors.
• Turn on every light circuit and dimmer; note flickering, dead fixtures or warm trim rings.
• Ask whether permits were pulled for added lighting and whether any beams carry fixtures.
• If the room is below an attic, ask the inspector to note insulation and air sealing over that area.

The ASHI standard says inspectors describe the methods used to inspect attics but are not required to traverse attic load-bearing components concealed by insulation, so large areas over a coffered room may not be fully visible. A seller’s records, permit history and a contractor’s follow-up can fill gaps. Our structure and exterior hub gathers related guides on framing, roofs and ceilings, and the guide to hiring a home inspector covers how to ask about scope before the inspection.

References

• Attic Air Sealing Project — ENERGY STAR
• Identify the Problems You Want to Fix — ENERGY STAR
• A Brief Guide to Mold, Moisture and Your Home — U.S. Environmental Protection Agency
• ASHI Standard of Practice for Home Inspections — American Society of Home Inspectors
