Infrared vs Thermal Camera: The Real Difference

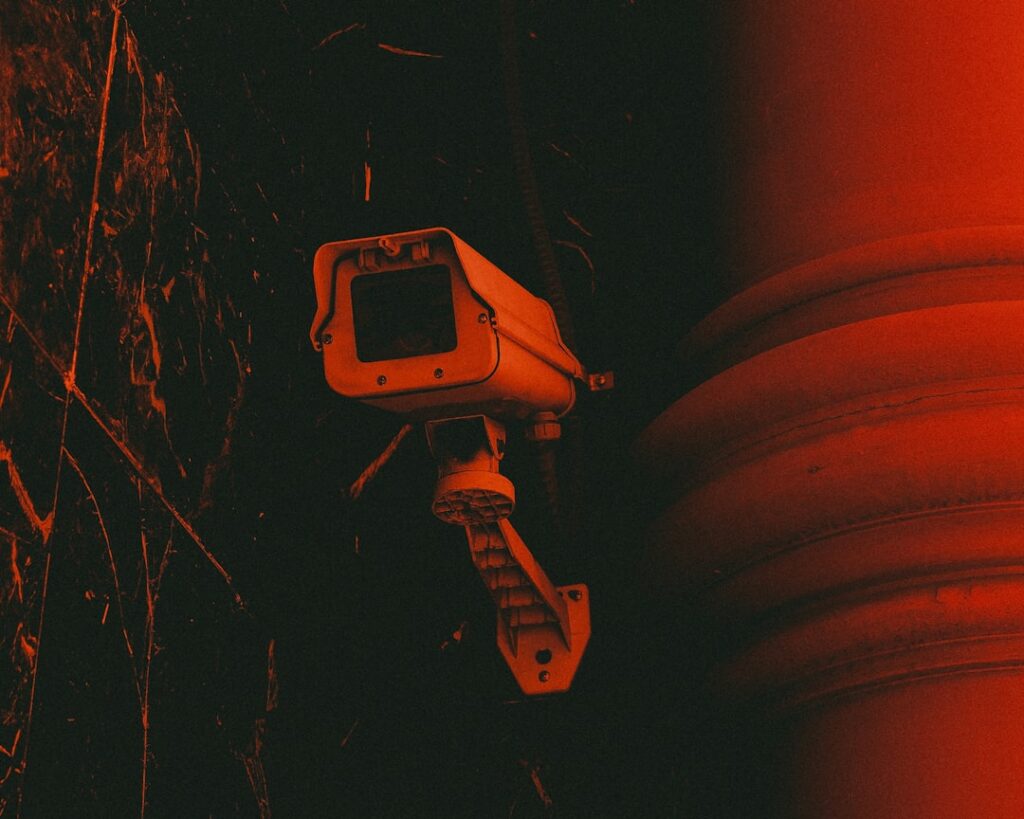

Searching for an infrared camera can turn up two very different products: a security camera ringed with small red lights that sees in the dark, and a handheld thermal camera that shows heat as color. Both are sold as infrared cameras, and both are, in a sense. The difference is which part of the infrared spectrum they use and where that energy comes from. Near-infrared cameras record infrared light reflected off objects, usually from a built-in illuminator. Thermal cameras record infrared energy that objects emit because of their own temperature. Every thermal camera is an infrared camera, but most infrared cameras are not thermal cameras. That distinction decides whether a camera can find a cold wall, a damp ceiling or a warm breaker, or whether it just shows a grainy black-and-white picture of a dark room. This guide sorts out the terms, compares what each type can and cannot do, explains why home inspection relies on thermal imaging, and clears up the most common myths and buying mistakes.
Part of our Thermal Imaging for Homes guide — start there for the full picture →
Infrared vs Thermal Camera: The Short Answer
Infrared is the band of electromagnetic radiation just beyond visible red light. It is wide, and different parts of it behave very differently. Cameras that use the part closest to visible light work much like ordinary cameras: they need a light source, and they record how surfaces reflect it. Cameras that use the long-wave part of the band work differently: they record energy that surfaces give off on their own, which depends on temperature.
Reflected infrared
Most security cameras, baby monitors, doorbell cameras and trail cameras with night mode use near-infrared. They switch on small infrared LEDs, which light the scene with wavelengths the human eye cannot see, and the camera sensor records the reflection. The result is a monochrome image that looks like a dim photograph. It shows shapes, faces and objects, but the brightness has to do with how much illuminator light bounces back, not with how warm anything is.
Emitted infrared
Thermal cameras, also called thermal imagers, work in the long-wave infrared band. Every object above absolute zero emits infrared energy, and warmer surfaces emit more. A thermal camera collects that energy through a special lens and turns it into a temperature map. It needs no light at all. A warm pipe in a pitch-dark crawlspace shows up just as clearly as it would at noon. The thermal imager guide explains the sensor and the specifications in detail.
Why the confusion persists
Marketing language blurs the line. Product listings use “infrared,” “IR,” “night vision” and “thermal” loosely, and some inexpensive cameras are described as “infrared thermal” when they only use reflected near-infrared light. The simplest test is to ask whether the camera can show the temperature of a surface or a temperature difference between two surfaces. If it cannot, it is not a thermal camera, whatever the listing says.
Camera Types Compared
The table below summarizes the main kinds of cameras that get described as infrared. Wavelength ranges are approximate and vary by source and manufacturer, so treat them as general physics rather than exact boundaries.
| Camera type | Approximate wavelength | What it sees | Common use |
|---|---|---|---|
| Visible-light camera | Roughly 0.4 to 0.7 micrometers | Reflected visible light | Everyday photos and video |
| Near-infrared (NIR) night-vision camera | Roughly 0.7 to 1 micrometer | Reflected infrared light, usually from built-in LEDs | Security cameras, doorbells, baby monitors, trail cameras |
| Short-wave infrared (SWIR) camera | Roughly 1 to 2.5 micrometers | Reflected short-wave infrared; can see through haze and some materials differently than visible light | Industrial sorting, research, specialized inspection |
| Mid-wave infrared (MWIR) thermal camera | Roughly 3 to 5 micrometers | Emitted heat, often from hotter targets | Research, gas detection and specialized industrial work; often cooled sensors |
| Long-wave infrared (LWIR) thermal camera | Roughly 8 to 14 micrometers | Emitted heat from surfaces near room temperature | Home inspection, energy audits, electrical scans, firefighting, building diagnostics |
| Spot infrared thermometer | Typically long-wave infrared | A single average surface temperature, not an image | Quick checks of vents, pipes, appliances and cooking surfaces |
Near-infrared night vision
Near-infrared cameras are cheap, small and everywhere. Their sensors are close relatives of ordinary camera sensors, which is why many phone cameras can see the flicker of a TV remote’s infrared LED. Their strength is identification: a near-infrared camera at night can show a recognizable face or license plate in a way a low-resolution thermal camera usually cannot. Their weakness, for home diagnostics, is total: they tell you nothing about temperature.
Short-wave infrared
Short-wave infrared sits between near-infrared and the thermal bands. These cameras also rely mostly on reflected light, but at wavelengths where materials can look surprisingly different from how they appear to the eye. They are used in industry and research and tend to be expensive. They are not a substitute for a thermal camera in a house. The short-wave infrared camera guide covers what they do and why they rarely show up in home inspection kits.
Mid-wave and long-wave thermal
Thermal cameras fall into two broad groups. Mid-wave cameras often use cooled detectors and suit hotter targets and specialized work. Long-wave cameras usually use uncooled microbolometer sensors, which makes them smaller, battery powered and far more affordable. Because walls, floors, ceilings, pipes and electrical components sit near room temperature, long-wave cameras are the practical choice for buildings.
What Each Camera Can and Cannot Do
The fastest way to understand the difference is to put both camera types in front of the same household problem.
A cold draft around a window
A thermal camera aimed at a window frame on a cold morning can show cool streaks where outside air is leaking in. A near-infrared camera aimed at the same window shows the window, lit by its LEDs, with no sign of the draft. ENERGY STAR’s DIY checks describe low-tech ways to find leaks, such as a visual inspection of common leak sites and feeling for cool air with a damp hand, and suggest hiring a home energy professional for a comprehensive energy audit to find hidden air leaks. A thermal camera is one tool such professionals may use, and it can speed up the search for a homeowner, too.
A damp ceiling stain
Water evaporating from drywall cools the surface. A thermal camera can show that cool patch as a distinct shape, sometimes larger than the visible stain. A near-infrared camera shows only what the eye would see under its illuminator. Even the thermal camera does not detect water directly: it detects temperature, and moisture is one of several possible causes. A moisture meter confirms it. The infrared moisture meter guide explains how the two tools work together and why the name can be misleading.
Ducts, heating and cooling
ENERGY STAR notes that nearly half of the energy used in a home goes to heating and cooling, and that sealing and insulating ducts can improve heating and cooling efficiency by as much as 20 percent. A thermal camera can help show supply ducts leaking warm air into an attic, uneven radiant floor heating or a room that never gets enough airflow. A near-infrared camera cannot show any of this, because none of it changes how surfaces reflect light.
Security and identification
The roles reverse outdoors at night. A near-infrared camera with good illumination can record clear detail at a front door. A thermal camera detects a person or animal by body heat, even in fog or deep shadow, but low-resolution models may show a warm silhouette rather than a recognizable face. That is why security products often use near-infrared, while search, firefighting and wildlife detection often use thermal.
Seeing through things
Neither camera type sees through walls. A thermal camera reads the surface facing it, and what lies behind a wall only appears if it changes that surface’s temperature. Glass reflects and blocks long-wave infrared, so a thermal camera pointed at a window mostly sees the glass and reflections, not the room behind it. Near-infrared light passes through ordinary glass more readily, which is one reason security cameras can work behind a window when their own illuminator is not reflecting off it. The guide to whether thermal imaging can see through walls covers what hidden conditions can and cannot show up.
Why Home Inspection Uses Thermal (LWIR) Cameras
When inspectors, energy auditors and electricians talk about infrared cameras, they almost always mean long-wave thermal cameras. The reason is simple: the conditions they look for change surface temperature, not surface reflectance.
What thermal imaging can flag in a house
A long-wave camera can flag patterns that may indicate missing or settled insulation, air leakage, moisture from leaks or condensation, warm electrical connections, overheating equipment, radiant heat layouts and ductwork problems. Each of these is an indication rather than a diagnosis. Good practice pairs the thermal image with a second check, such as a moisture meter reading, a visual inspection or an electrician’s evaluation. The infrared camera inspection guide walks through how inspectors run a scan and report what they see.
Where thermal imaging fits in a standard inspection
The ASHI Standard of Practice describes a home inspection as a visual examination of readily accessible systems and components. It states that inspections under the standard are not technically exhaustive, a term it defines as including the extensive use of advanced techniques, measurements and instruments, and that inspectors are not required to identify concealed conditions. Thermal imaging goes beyond that baseline, which is why many inspectors offer it as an optional add-on rather than a standard inclusion. Ask before booking whether a thermal scan is part of the visit.
Front Range conditions
Thermal imaging needs a temperature difference to work well, and the Colorado Front Range often supplies one. Cold, clear winter mornings after the heat has been running create strong contrast between heated interiors and outside air. Big daily swings can also cause confusing patterns, since sun-warmed walls on a south or west face can mask or mimic problems for hours. Scanning early in the day, recording the weather, and comparing similar walls under similar conditions all help.
Reading the colors
A thermal image is a set of temperature estimates displayed with a chosen color palette. The same scene can look calm or alarming depending on the palette and the temperature span. Understanding that is half the skill. The guide to thermal camera colors explains how to read common palettes and why locking the span helps when comparing rooms.
Spot Thermometers, Phone Add-Ons and Handheld Cameras
Once it is clear that a thermal camera is the right tool, there are still several ways to get thermal readings, and they differ in what they capture.
Spot infrared thermometers
A spot infrared thermometer, often shaped like a pistol, measures the average temperature of a circular area and shows it as a single number. It uses the same physics as a thermal camera but produces no image. That makes it useful for checking a supply register, a pipe or a breaker cover plate, and much less useful for finding the location of a problem across a wall. The measured spot also grows with distance, so a reading from across a room averages a large area. The infrared thermometer gun guide covers distance-to-spot ratios and good technique.
Phone thermal add-ons
Small thermal modules that plug into a phone are the most accessible way to get a real thermal image. They use the phone’s screen, processing and storage, and they generally cost less than standalone cameras. Phone-only thermal apps that do not use an add-on module cannot measure heat, because ordinary phone camera sensors do not respond to long-wave infrared. Some apps simply apply a thermal-looking color filter to a normal photo. The thermal camera for phone guide explains compatibility, setup and what to expect from these modules.
Standalone handheld cameras
Handheld thermal cameras have their own display, battery and controls. They are easier to use for long scans, often offer better resolution and sensitivity, and usually produce cleaner reports. Inspectors and contractors tend to prefer them for regular work. For a homeowner who needs one only for a single project, renting can be practical, and the guide to renting a thermal imaging camera covers when that makes sense.
Specs that separate thermal cameras
When comparing true thermal cameras, a few numbers matter most. Native detector resolution, meaning the number of real thermal pixels, decides how small a target can be measured at a given distance. Thermal sensitivity, often listed as NETD, decides how subtle a temperature difference shows up. Adjustable emissivity matters for shiny surfaces. Upscaled “enhanced” resolution figures and visible-light camera megapixels can be misleading if read as thermal performance.
Choosing the Right Camera for the Job
The right choice follows from the question being asked. Matching the tool to the task avoids spending money on a camera that looks capable on paper but cannot answer the question at hand.
Watching a property at night
For monitoring a driveway, a porch or a back gate, a near-infrared security camera is usually the better fit. It is inexpensive, records identifiable detail when its illuminator reaches the scene, and connects easily to recording systems. A thermal camera can detect people or animals at longer range or through light fog, but it is rarely needed for ordinary home security and costs far more per useful pixel.
Hunting drafts and insulation gaps
For energy work, a long-wave thermal camera is the tool. Scanning on a cold morning, after the heating system has run for several hours, gives the best contrast. Exterior walls, ceiling edges, rim joists, attic hatches, outlets on outside walls and window frames are common places to look. A phone add-on can be enough for a single weekend project, while a homeowner planning a series of upgrades may get more value from a handheld camera or a professional energy audit.
Checking for leaks and moisture
Thermal cameras help narrow down where to look for moisture, but the final answer comes from a moisture meter and a visual inspection. Scanning under bathrooms, around tubs and showers, below windows and along ceilings under roof valleys can reveal cool patches worth testing. Recording a few reference images when the house is dry makes later comparisons more meaningful.
Electrical and mechanical checks
A thermal camera can flag warm outlet covers, cords, plugs and appliance connections from a safe distance. Opening an electrical panel to scan live components is a job for an electrician or a trained inspector, not a homeowner. For furnaces, boilers and water heaters, a spot thermometer may be all that is needed to compare supply and return temperatures, while a thermal camera adds value when tracing radiant tubing or finding a duct that has come apart.
Budget and frequency of use
Frequency of use is often the deciding factor. A near-infrared camera costs little and runs constantly. A thermal camera for occasional household checks can be a phone add-on or a rental. Frequent users, landlords with several properties and tradespeople usually benefit from a dedicated handheld. Whatever the budget, the key is confirming that the device is genuinely thermal before buying.
Myths and Buying Mistakes
Because the terms are used so loosely, a few misunderstandings come up again and again.
Myth: a night-vision camera can find heat loss
It cannot. A near-infrared security or trail camera records reflected light from its own illuminator. A cold wall and a warm wall look the same to it. Buying a night-vision camera to find drafts or insulation gaps is a common and avoidable mistake.
Myth: thermal cameras see through walls and clothes
Thermal cameras read surface temperature only. They can show a stud, a pipe or a missing batt of insulation when that hidden feature changes the surface temperature enough, but they do not look inside a wall. Thermal images of people show surface warmth, not what lies beneath clothing.
Myth: thermal cameras can see gases and smells
Ordinary long-wave thermal cameras do not show smells or most gases. Specialized optical gas imaging cameras exist for industrial leak detection, but they are a different, much more expensive class of tool. For a light-hearted look at one of the most-searched versions of this question, see whether thermal cameras can see farts.
Myth: more megapixels means a better thermal camera
Many thermal cameras include a separate visible-light camera, and its megapixel count says nothing about thermal performance. Compare native thermal resolution and sensitivity instead.
Mistake: trusting one image
A single thermal image with a dramatic red spot can prompt an expensive repair that was never needed. Reflections, sunlight, recent furniture moves and air from a register can all create misleading patterns. Confirming findings with a second method, and seeking professional help for anything that affects safety or a purchase, keeps the camera useful rather than alarming.
Where to go next
The thermal imaging hub gathers guides on cameras, techniques and interpretation, and the broader home inspection tools overview shows how thermal cameras fit alongside moisture meters, outlet testers and other instruments.
References
- ENERGY STAR. What to Look For: DIY Checks and Inspections
- ENERGY STAR. Heat and Cool Efficiently
- American Society of Home Inspectors. ASHI Standard of Practice for Home Inspection
Frequently asked questions
Is a thermal camera the same as an infrared camera?
A thermal camera is a type of infrared camera that detects emitted heat, usually in the long-wave band. Many other infrared cameras, such as night-vision security cameras, record reflected near-infrared light and cannot measure temperature.
Can a night-vision security camera find drafts or insulation gaps?
No. Night-vision cameras show reflected light from their own infrared illuminators. Finding drafts, insulation gaps or damp spots requires a thermal camera that reads surface temperature.
Do thermal camera apps work on a phone without an add-on?
Not for real heat measurement. Standard phone camera sensors do not respond to long-wave infrared, so a true thermal image needs a thermal add-on module or a dedicated thermal camera.
Which camera type do home inspectors use?
Inspectors who offer thermal imaging use long-wave infrared thermal cameras, because moisture, insulation and electrical problems show up as surface temperature differences. Thermal scans are often an optional add-on.
Can a thermal camera see through walls?
No. It reads the temperature of the surface it faces. Hidden pipes, studs, leaks or missing insulation only show up when they change that surface temperature enough to detect.
