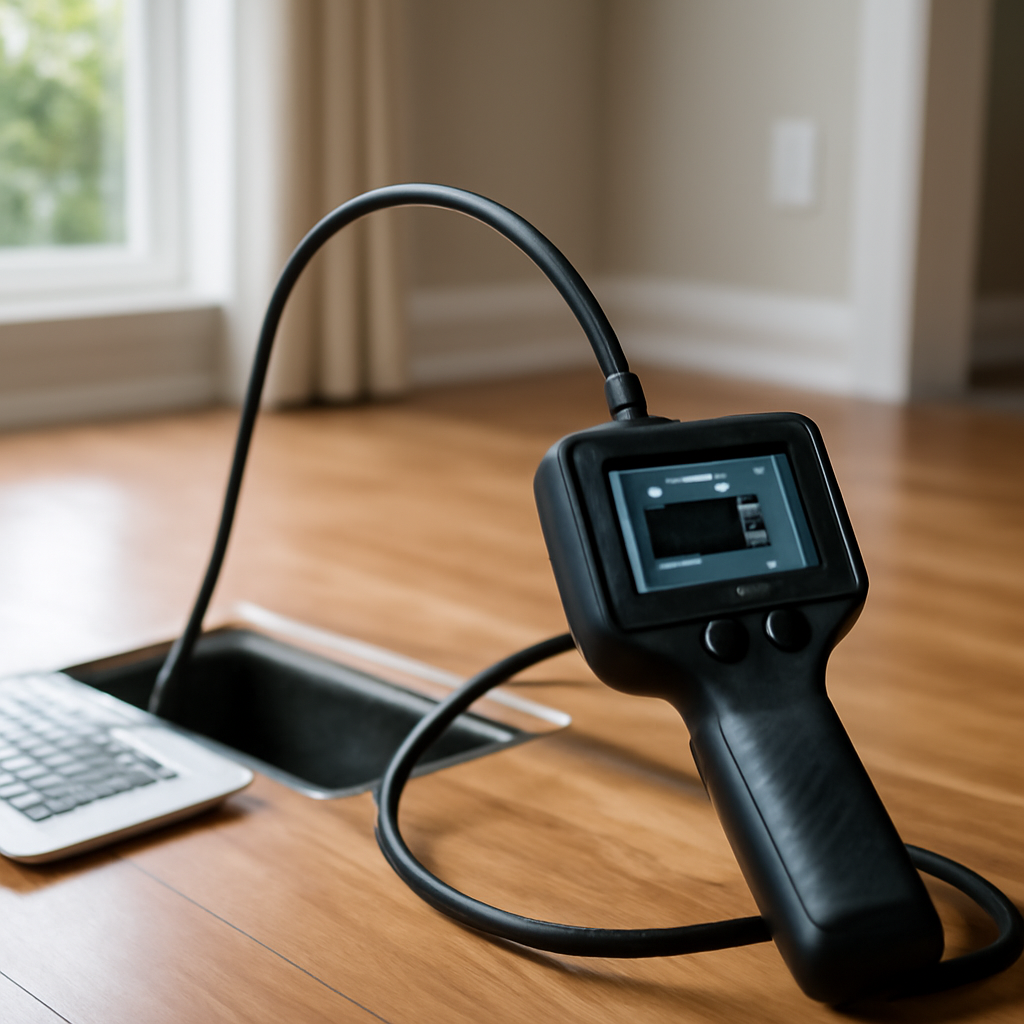

HD Borescope: What Homeowners Need to Know
An HD borescope is a flexible inspection camera with 1080p high-definition video output, used for inspecting drain lines, HVAC ductwork, automotive cylinder interiors, wall cavities, and any space too narrow for direct visual inspection. In 2026, HD has become the default resolution tier in the consumer borescope category — what was a premium feature five years ago is now the entry-level standard. This guide walks through what HD actually means at this price point, where the resolution upgrade meaningfully helps inspection work, and where higher-tier 2K or 4K borescopes justify their cost for professional users.
What HD means in 2026 borescope specifications
HD on a borescope spec sheet typically refers to 1080p (1920×1080 pixels) video output at 25 or 30 frames per second. The image sensor inside the borescope tip — typically a CMOS sensor measuring 8mm or smaller — captures imagery at the rated resolution, which the device then streams to either a built-in screen, a connected phone, or a tablet via Wi-Fi or USB. The category transition from 720p to 1080p as the default standard happened during 2023-2025, driven by the same CMOS sensor cost reductions that made 1080p ubiquitous in smartphone cameras.
Some lower-tier “HD” borescopes actually upsample lower-resolution sensor data to 1080p output. The displayed video is 1080p but the underlying image detail does not match the resolution headline. Verifying actual sensor resolution rather than output resolution requires reading the technical specifications carefully — the relevant number is the megapixel rating of the sensor itself, not the output resolution shown on the box. A genuine 1080p borescope uses a 2-megapixel sensor; a marketed-as-HD but upsampled device may use a 0.3 or 0.5 megapixel sensor with software interpolation.
Where HD resolution actually helps inspection work
The practical value of HD over 720p resolution shows up in three common inspection scenarios. First, identifying small details — hairline cracks in pipe walls, fine corrosion patterns on metal surfaces, root intrusion in drain lines — benefits from the higher pixel density. The 720p image often blurs these details into the background; HD preserves them. Second, recording video for documentation — insurance claims, real estate disclosures, contractor scope-of-work proof — benefits from the better video quality. The recorded clip stays useful as evidence longer when the resolution holds up.
Third, working with the small-screen display common on borescope devices — most have 3- to 5-inch screens — the higher resolution means more usable information per inch of display. Detail visible on a 1080p stream remains visible after the small-screen rendering; the same scene at 720p may lose enough information in the down-rendering to mask findings. For inspectors who route the borescope output to a tablet or laptop rather than the device’s built-in screen, the resolution upgrade scales further.
Where HD does not provide enough resolution
Three professional use cases push past HD into 2K or 4K borescope territory. Aviation and turbine inspection requires identifying very small defects in blade surfaces and combustion chambers, where 4K resolution provides necessary detail. Precision manufacturing quality control sometimes uses 2K or 4K borescopes for similar reasons. Forensic engineering investigation, where findings will be reviewed in court or by expert witnesses, benefits from the higher resolution to support detailed analysis.
For typical homeowner and general-contractor use — drain inspection, HVAC duct surveys, plumbing trace work, automotive cylinder inspection, wall-cavity surveys — 1080p HD provides enough detail. Buying a 4K borescope for these uses adds cost without meaningfully improving the inspection outcome. The exception is documentation that may need to be enlarged later for review; in those cases the higher resolution preserves zoom-and-crop flexibility that HD does not.
Borescope categories and their HD tier
The borescope category breaks into several form factors, each with its own HD pricing. Phone-attached USB or Wi-Fi borescopes run $30 to $120 in HD configurations and pair with a smartphone for display — the most common consumer entry point. Standalone borescopes with built-in screens run $80 to $400 in HD; the integrated screen adds cost but provides a self-contained tool that does not depend on a smartphone. Articulating-tip borescopes with steerable cameras run $300 to $1,500 in HD; the joystick-controlled camera tip allows inspection of complex spaces by aiming around obstructions.
Professional-grade dual-lens borescopes run $400 to $2,500 in HD and use two cameras (forward and side-view) on the same probe to inspect difficult geometries without rotating the probe itself. Industrial videoscopes with replaceable insertion tubes, environmental sealing, and multi-meter probe lengths run $2,500 to $15,000+ in HD and serve aviation, power generation, and industrial maintenance. For more on the broader borescope category structure, see our companion guides on borescopes and high definition borescope.
Probe diameter, length, and other specs alongside HD
Resolution is one of several specifications that determine borescope suitability. Probe diameter affects what spaces the device can enter — 8mm is common for general use, 5.5mm for tighter spaces, 3.9mm for very small ports, and sub-3mm for automotive cylinder use. Smaller diameter usually means lower resolution because the sensor has to be physically smaller. The smallest-diameter borescopes often cannot achieve HD because there is no room for a 2-megapixel sensor at that size.
Probe length affects what work the borescope can reach. Consumer borescopes commonly use 1-meter, 3-meter, 5-meter, or 10-meter probes. Drain inspection typically needs at least 5 meters; HVAC duct inspection often needs 10 meters or more. Longer probes lose flexibility — pushing a 10-meter cable through a curve takes more force than a 3-meter cable, and very long probes can be difficult to steer. Some professional units use semi-rigid probes that hold their shape rather than flexible ones, trading flexibility for push-through capability.
Lighting on the probe tip matters as much as the sensor. Built-in LED illumination at the tip is standard; adjustable LED brightness is a desirable feature for varied-lighting work. Some HD borescopes also offer auxiliary side-lighting for inspecting wall surfaces parallel to the probe — useful for finding pipe corrosion or duct seam separation where head-on lighting underexposes the surface of interest.
Connectivity and recording features
Most HD borescopes record video to either internal storage, a microSD card, or a paired smartphone. Storage capacity matters for documentation work — a typical 1080p HD recording at 30fps consumes roughly 5 to 10 MB per second, so a 32GB card holds about 60 to 90 minutes of continuous video. Snapshot still images at 1080p resolution consume around 500KB to 2MB each, so card capacity rarely limits photo work but can constrain extended video documentation.
Wi-Fi connectivity to smartphone or tablet apps is now standard on most HD-tier consumer borescopes. The app provides live view, recording controls, image organization, and cloud upload features. App quality varies significantly across brands; reviews of the app are often more useful than reviews of the hardware itself, since a great camera with a buggy app produces a frustrating user experience. Some borescopes also support USB-C direct connection to laptops or USB-C phones, which can be more reliable than Wi-Fi for sustained video recording.
What HD borescope use looks like in practice
A homeowner using an HD borescope for drain inspection typically inserts the probe through a cleanout, pushes it 10 to 30 feet down the line, and watches the live video on a smartphone or built-in screen. The HD resolution makes small details — fine cracks, individual tree roots, joint separations — visible on the small screen during inspection rather than only after enlarging recorded video. Recording the entire run while inspecting provides documentation that supports plumber scope-of-work conversations or insurance claims.
HVAC duct inspection uses similar workflow with a longer or more flexible probe. The HD resolution helps distinguish dust accumulation from microbial growth, identify rodent intrusion signs, and document duct connection integrity. Automotive cylinder inspection through spark plug ports uses a much smaller-diameter probe (typically 5.5mm or smaller) and shorter length, with HD resolution helping identify valve seat wear, piston deposits, or cylinder wall scoring. Our home inspection tools buyer’s guide covers how borescopes fit alongside other inspection equipment in a professional or DIY toolkit.
Image quality factors beyond pixel count
Resolution alone does not determine image quality. Several other factors shape what the borescope actually shows. Lens quality affects sharpness and color accuracy — cheap plastic lenses produce soft images even at HD resolution. Sensor sensitivity (low-light performance) affects how usable the image is in dim conditions where the built-in LED lighting may not reach evenly. Field of view determines how much of the inspection environment shows in the frame at once — wider field of view sees more but at lower per-pixel detail; narrower field gives more detail on smaller subjects.
Color rendering matters for distinguishing materials by appearance. Drain interiors with bronze-colored corrosion versus black sludge versus white mineral deposits all carry different diagnostic meaning, and a borescope that compresses these into a similar color range reduces inspection value. White balance settings and color calibration are features worth checking on HD borescopes intended for documentation work — the recorded video should match what the inspector sees on the screen.
Common DIY use cases worth understanding
Homeowners typically buy HD borescopes for several recurring use cases. Slow drain diagnosis where the homeowner wants to verify whether the blockage is hair, grease, root intrusion, or something more serious before calling a plumber — the inspection cost recovers the borescope purchase within a few uses. Wall cavity inspection through small drilled holes to investigate suspected leaks, electrical wiring issues, or pest activity — useful when opening the wall fully is not yet warranted. Engine cylinder inspection on used vehicles before purchase, where seeing inside the combustion chamber reveals more than any seller’s representation. Septic tank baffle inspection where access is limited but visual condition assessment matters.
Some less common but valuable uses include duct inspection after rodent activity, well casing inspection to verify integrity above the water table, chimney flue inspection to identify creosote buildup or flue tile damage, and air conditioner coil inspection for cleanliness and fin damage. Each use leverages the borescope’s ability to put a camera into a space where the human eye cannot reach. The HD resolution makes the captured imagery useful both for in-the-moment diagnosis and for later review with a contractor or for documentation.
What to skip when shopping
Several marketed features add cost without meaningful inspection value. Built-in audio recording rarely helps borescope work — the relevant information is visual. Multi-color LED lighting modes (red, green, blue tip lights) are marketed as material-distinction features but in practice rarely help homeowner inspection. Bluetooth controllers separate from the borescope tend to be unreliable and add another battery to manage. Magnetic tip attachments for retrieving dropped objects sound useful but rarely justify the bulkier tip design that supports them. Solid-state direct USB-C cabling versus Wi-Fi streaming is genuinely valuable; everything else in the accessory bundle is often promotional rather than functional.
Probe stiffness also varies more than the specifications suggest. Reading user reviews about probe handling in real-world conditions — how the probe behaves around 90-degree elbows in drain lines, whether it tends to coil back on itself in large cavities, how easily it threads through HVAC turning vanes — tells more than the published flexibility specs. Most reputable HD borescope brands have an established user base on home-improvement forums where these handling characteristics get discussed in detail.
References
- InterNACHI on borescope inspection use — International Association of Certified Home Inspectors
- Department of Energy duct sealing guidance — U.S. Department of Energy
- ASHRAE ductwork inspection standards — American Society of Heating, Refrigerating and Air-Conditioning Engineers
- NFPA inspection codes — National Fire Protection Association
