FLIR Camera for iPhone: What Homeowners Need to Know
A FLIR camera for iPhone is a thermal-imaging attachment from Teledyne FLIR that plugs into the iPhone’s Lightning or USB-C port and uses the phone for display, storage, and (usually) power. FLIR ships the most established lineup in the smartphone IR market — FLIR ONE Gen 3, FLIR ONE Pro, and FLIR ONE Edge Pro — and the units appear regularly in home inspection, HVAC service, and energy-audit workflows. This guide covers each current FLIR iPhone option, the Lightning-to-USB-C generational split, the MSX visible-light overlay, the FLIR ONE app, and how the FLIR pathway compares to competing brands. The goal is plain-language information for homeowners and working inspectors deciding whether the FLIR ecosystem fits their workflow.

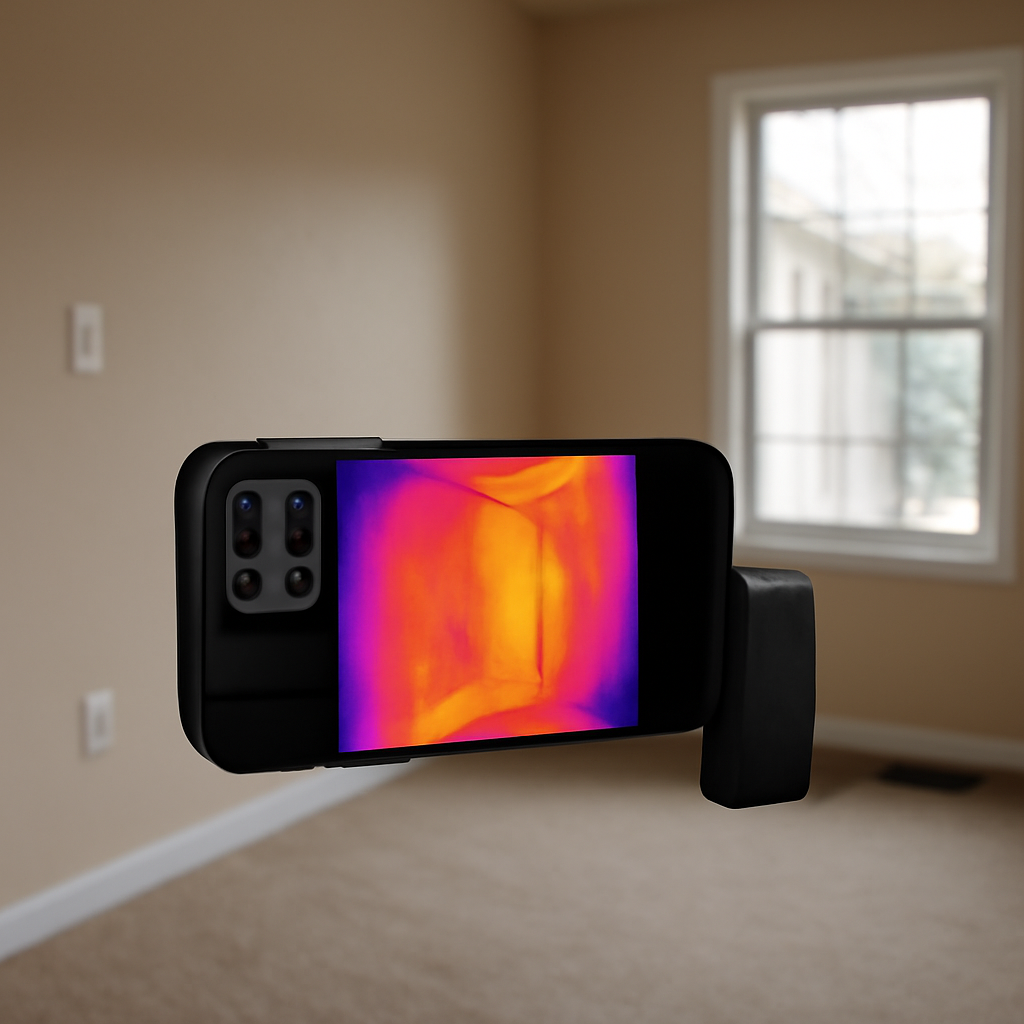

What a FLIR camera for iPhone actually is
The FLIR attachment houses a microbolometer sensor that detects long-wave infrared between 8 and 14 micrometers. The unit plugs into the iPhone’s port and streams the thermal image to FLIR’s iOS app. The app renders the image, applies the chosen color palette, draws temperature spot markers, and saves stills or video to the camera roll. Image quality depends on the sensor in the attachment, not on the iPhone model. An iPhone 12 and an iPhone 16 running the same FLIR ONE Pro produce equivalent images.
FLIR iPhone lineup at a glance
FLIR ONE Gen 3 is the entry-tier model at 80 by 60 sensor resolution, shipped in Lightning and USB-C versions to match the iPhone port. FLIR ONE Pro is the mid-tier at 160 by 120 native resolution with MSX overlay, also Lightning and USB-C. FLIR ONE Edge Pro is the most recent addition — same 160 by 120 resolution as the Pro but with a wireless Bluetooth connection that lets the imager be positioned independently of the phone. The FLIR ONE camera family lineup covers the full sensor and battery comparison.
Lightning versus USB-C generational split
iPhone 5 through iPhone 14 use the Lightning connector. iPhone 15 onward uses USB-C. FLIR sells separate Lightning and USB-C SKUs of each FLIR ONE model. A Lightning unit does not work on a USB-C iPhone and vice versa — passive adapters fail because the data protocols differ. Buyers must confirm the iPhone model before ordering. The good news is that the same app supports both, so a user upgrading from an iPhone 13 to an iPhone 16 only needs to buy the matching connector version of the same model to retain their workflow.
MSX overlay — the FLIR-specific feature
FLIR’s Multi-Spectral Dynamic Imaging (MSX) overlays edge data from the iPhone’s visible-light camera on the thermal image. The result is that outlet plates, switch covers, window frames, and structural lines appear as crisp edges within the thermal image instead of being smeared. MSX does not add real thermal resolution — the sensor still operates at 160 by 120 native — but the perceived clarity makes the image meaningfully easier to interpret weeks later when an inspector is writing a report. Buyers should treat MSX as a strongly preferred feature for any inspection-grade work.
FLIR ONE Pro versus FLIR ONE Gen 3
The Pro doubles native sensor resolution (160 by 120 versus 80 by 60), adds MSX overlay, supports radiometric image export with full thermal data retained in the JPEG, and ships in a heavier, more rugged housing. The Pro also includes its own internal battery rated for about an hour of imaging, which preserves the iPhone’s charge during long scans. The Gen 3 is lighter and cheaper but draws power from the iPhone and lacks the radiometric export needed for desktop re-analysis. Working inspectors should default to the Pro. Homeowners doing one or two casual energy audits can choose either.
FLIR ONE Edge Pro and the wireless option
FLIR ONE Edge Pro disconnects the sensor from the iPhone port entirely. The imager has its own battery, Bluetooth or Wi-Fi connection, and small built-in display. The advantage is that the inspector can position the imager at a ceiling, in a tight crawl space, or under an HVAC pan while reading the image on the phone in hand. The tradeoff is roughly twice the price of the FLIR ONE Pro and a learning curve on the wireless pairing. Niche but useful for inspection scenarios where the operator and the target cannot share the same line of sight.
The FLIR ONE app — what it does
FLIR’s iOS app handles live thermal video display, still capture, video capture, palette selection (iron, rainbow, gray, lava, several others), temperature spot markers, isotherm highlighting, MSX rendering, and radiometric JPEG export. The app saves images to the iPhone camera roll by default with optional iCloud sync. FLIR also offers a desktop tool called FLIR Tools that imports the radiometric JPEGs for re-analysis with adjustable emissivity, reflected temperature, and palette settings. Inspectors writing formal reports lean on this desktop workflow.
Field of view and minimum focus
FLIR ONE Pro has a 55-degree horizontal field of view and a minimum focus distance of approximately six inches. FLIR ONE Gen 3 has a similar field of view and slightly longer minimum focus. Both work well for room-scale wall scans and for close-up inspection of outlets and breaker panels. Pro-tier add-on lenses for the FLIR ONE Pro extend the platform to longer-range work like roof and tall ceiling inspection from the floor.
Temperature range and accuracy
FLIR ONE Pro reads minus twenty to four hundred Celsius with rated accuracy of plus or minus three degrees or three percent of the reading. FLIR ONE Gen 3 covers roughly the same range with similar accuracy. That is sufficient for differential mapping work in home inspection, energy audits, and HVAC screening. It is not sufficient for HVAC commissioning, refrigerant superheat calculation, or applications requiring tight absolute temperature with controlled emissivity.
What FLIR for iPhone does well
Air leaks at windows, doors, and outlets show clearly. Missing insulation appears as a thermal pattern in attics and exterior walls. Water damage cooled by evaporation reads distinct from dry material. Radiant heating loops trace through finished floors. Overheating breakers and loose terminals appear as hot spots in panels. The Pro’s radiometric export lets each of these findings be re-analyzed in FLIR Tools after the scan.
What FLIR for iPhone does not do well
Refrigerant leaks require ultrasonic or dye detection. Plumbing behind thick tile is masked by thermal mass. Outdoor scans in direct sun are swamped by solar loading. Reflective surfaces reflect ambient infrared rather than radiating their own temperature. These limits come from infrared physics, not from FLIR specifically. The InterNACHI Infrared Certified curriculum covers each constraint.
Price and value across the FLIR iPhone lineup
FLIR ONE Gen 3 lists around two hundred to three hundred dollars. FLIR ONE Pro lists at four hundred fifty to six hundred dollars. FLIR ONE Edge Pro lists at one thousand to twelve hundred. Used Pro units appear at half retail on the secondary market and are a reasonable option for homeowner use. Working inspectors should buy new from an authorized FLIR reseller to retain warranty and to ensure calibration documentation is current.
FLIR for iPhone versus the Android equivalent
The FLIR ONE Gen 3 and Pro are sold in both iPhone and Android versions with identical sensor specs. The image quality is the same on both platforms — the choice follows the buyer’s existing phone, not a thermal performance difference. Inspectors on iPhone get cleaner integration with iCloud and other Apple workflow tools; Android users sometimes get more flexible file-system access. Either platform works for inspection-grade thermography.
Reporting workflow with FLIR for iPhone
Save the radiometric JPEG, not just a rendered screenshot. The radiometric file retains the thermal data and lets FLIR Tools or a third-party reporting platform re-analyze the image with different palettes, spot markers, or emissivity corrections after the scan. Cloud sync to a desktop tool eliminates the manual transfer step. The iPhone FLIR camera workflow notes cover the Notes app capture path some inspectors use for quick screening.
Common FLIR iPhone mistakes
Letting the iPhone battery drop below the threshold that triggers low-power mode, which disables the FLIR connection in some cases. Storing the attachment loose in a tool bag and scratching the lens. Operating outside the rated ambient temperature. Failing to save radiometric files and ending up with screenshots that cannot be re-analyzed. Each is avoidable with a hard case, a power bank, and an app-export setting check.
FLIR ONE accessories worth considering
The FLIR ONE Pro supports an optional telephoto lens attachment for longer-range work like roof and high-ceiling inspection from the floor. A small hard case in the twenty-to-forty-dollar range prevents lens damage and connector strain. The FLIR-branded carrying case bundled with some units is acceptable for occasional use but not adequate for daily fieldwork. Inspectors using FLIR ONE attachments multiple days per week should add the hard case to the kit and treat it as standard equipment rather than an accessory.
iPhone case compatibility with FLIR
The FLIR ONE attachment plugs directly into the iPhone port, which means thick cases sometimes prevent the connector from seating fully. FLIR ships a short extender cable in the box of most current units to clear rugged-case lips. Slim cases like Apple’s silicone allow direct seating without the extender. Otterbox Defender and similar bulky cases usually require the extender. Confirm box contents include the extender before ordering if a rugged case is in regular use.
When to call a certified thermographer
Commercial energy audits, post-construction commissioning, insurance claims, and any scan that may enter a legal dispute warrant a certified thermographer. The InterNACHI Infrared Certified and ITC Level I credentials cover emissivity correction, reflected-temperature compensation, and proper scan conditions. FLIR-on-iPhone scans are useful screening but do not substitute for certified work in those settings. Certified thermographers bring radiometric measurement training, emissivity correction tables for common building materials, and field protocols that produce defensible reports under cross-examination.
References
- DOE — Infrared Thermography for Energy Audits — U.S. Department of Energy
- InterNACHI — Infrared Certified Designation — International Association of Certified Home Inspectors
- ASHRAE — Building Thermography Resources — American Society of Heating, Refrigerating and Air-Conditioning Engineers
- DOE — Professional Home Energy Assessments — U.S. Department of Energy
